Same Path™ Technology for Efficient Steel Service Replacement
Overview

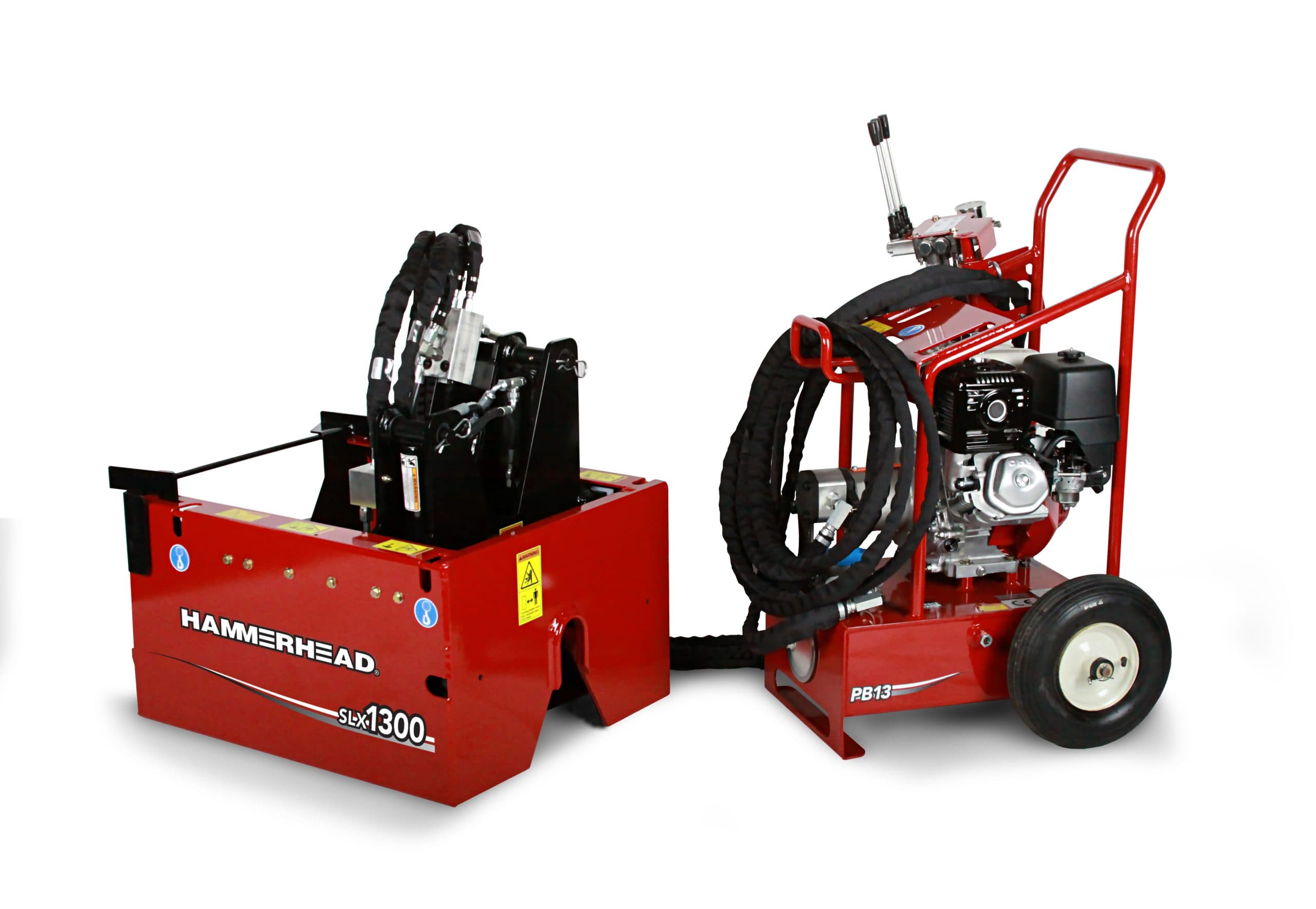

The innovative SLX1300 pipe extraction system from HammerHead Trenchless® uses Same Path™ Technology to remove 0.50 – 1.25” steel gas services from the ground while simultaneously pulling new HDPE or MDPE pipe into the existing location, greatly reducing risk to surrounding utilities. The minimal excavation requirements, simple set up and operation, and the elimination of additional easement for a new service make the pipe extraction process an economical and efficient alternative to other construction methods.
Industries
Plumbing
Wastewater
Water
Municipalities
Gas
Features
SAME PATH™ TECHNOLOGY
Utilizing the same path of the existing pipe minimizes risk to surrounding utilities.
MINIMAL EXCAVATION
Designed for a 4′ x 4′ pit.
COMPACT POWER
Generates up to 13.3 tons of pulling force.
SIMPLE OPERATION

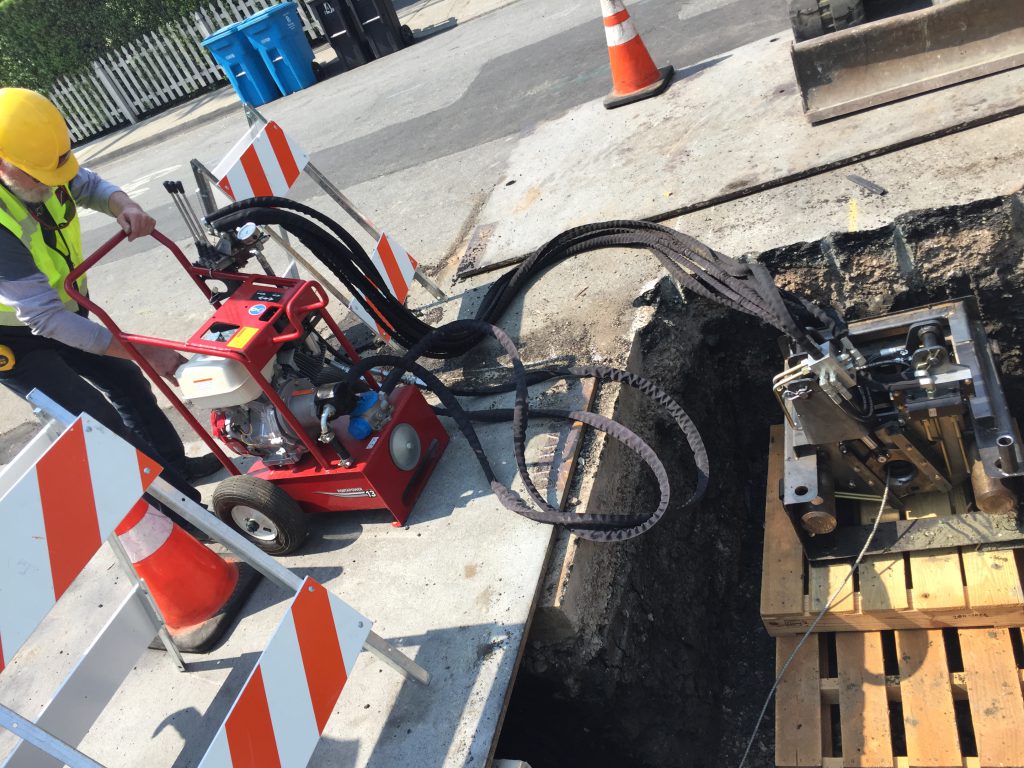

The extractor unit is controlled by a hydraulic powerpack outside the machine pit. The controls are simple so the system is easy to learn and operate.
EASY DISPOSAL

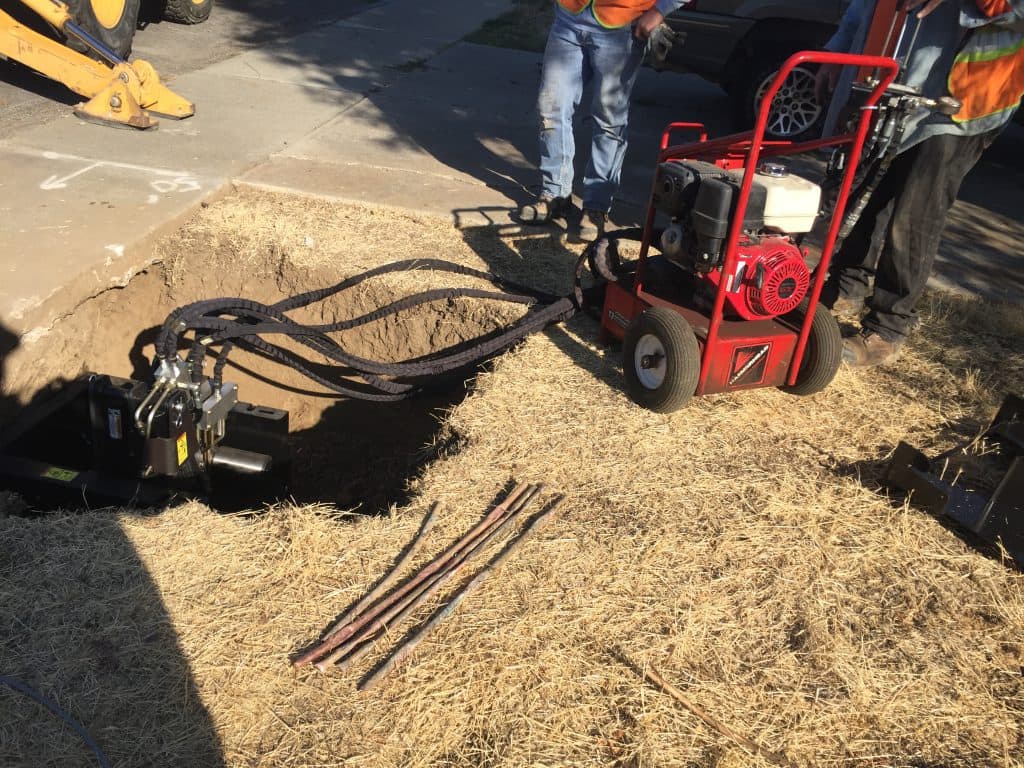

The unit’s on-board pipe shears cut the extracted pipe into manageable segments for convenient disposal/recycling.
Specifications
| SPEC | SLX1300 DOWNHOLE UNIT | PB13 CONTROL STATION |
|---|---|---|
| Rig Size L/W/H – in (cm) | 29.0/26.3/35.5 (73.7/66.7/90.2) | 22.5/26.2/35 (57.1/66.5/88.9) |
| Weight – lb (kg)* | 664 (301) | 250 (114) |
| Max. pulling force – tons (t) | 13.3 (12) @ 3,000psi | N/A |
| Max. line speed – fpm (mpm) | 7 (2.13) @ 6/gpm (23/lpm) | N/A |
| Replacement range – in (cm)** | 0.50 – 1.25 (1.3 – 3.2) | N/A |
| Max. red. pull length – ft (m) | 100 (30.5) | N/A |
| Engine manufacturer/model | N/A | 13 HP Honda® Gas |
| Pump flow – g/min (L/min) | N/A | 6 (23) @ 3,600 rpm |
| *Weight without optional accessories; **Schedule 40 welded steel |
