PortaBurst Lateral Bursting Systems

Overview

To satisfy the rising demand for sewer lateral replacements, plumbers are turning to trenchless lateral replacement. Trenchless lateral replacement can spare your customer the unpleasant side effects of open-cut lateral replacement and at the same time grow your business. The HammerHead® PortaBurst® lateral replacement system is a portable, cost-effective and efficient method of replacing 2″ to 6″ (5 to 15 cm) lateral pipes in a minimum amount of time and unlike lining the new pipe can be the same size or even a size larger that the old pipe.

Industries
Plumbing
Wastewater
Municipalities
Features

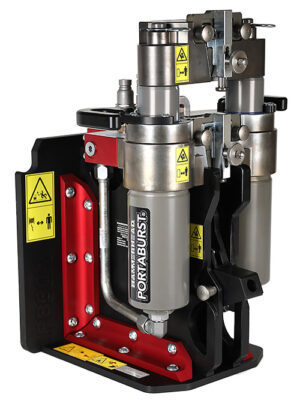

PortaBurst PB30G2: MINIMUM PIT. MAXIMUM PROFIT.

For your tough lateral pipe bursting jobs, you need two things from your bursting system – the power to get the job done quickly and the durability to be up and running burst after burst. The rugged HammerHead PortaBurst PB30G2 replaces 2 to 6″ lateral pipes with up to 30-tons of pulling force. Its compact footprint requires minimal excavation and the system is built to help you cut down on wasted time, maximizing productivity. Its user-friendly, modular design makes it easy to operate, easy to set up and easy to transport. Plus, Quick Grip burst heads make it easy to securely connect new pipe without any hand tools. With efficiency like that, the PortaBurst PB30G2 is the ideal system for high-profit lateral replacement.

QUICK GRIP® BURST HEADS

Quick Grip burst heads give you the industry’s quickest, most secure connection of the head to replacement HDPE pipe. These burst heads don’t require any hand tools, can negotiate bends up to 45 degrees and are available in 4- and 6-inch options.

LOW PRESSURE, HIGH PRODUCTION

PortaBurst systems operate at low pressure, so you can choose from a variety of power supply options. Use a dedicated control unit or run it from your backhoe or compact excavator – or any other hydraulic supply capable of 3,000 psi. The cycle length of the 12″ hydraulic cylinder supports production rates of up to 6 feet per minute.

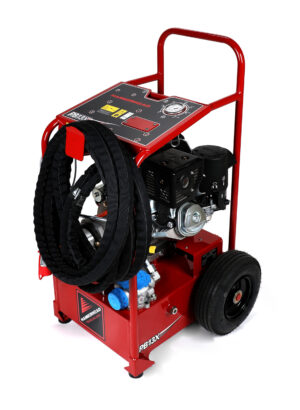

DEDICATED POWER WITH PB13X

The newest hydraulic control unit, the PB13X, has a reliable engine key start that is simple and easy to learn. The tethered “hold to run” controller allows the operator to be close to the pit while the control unit is further away, reducing noise and clutter around the work area. With 4-ply heavy-duty tires and a rugged frame, the unit easily moves around the job site.

POSITIVE CABLE GRIP SYSTEM

Cable grip systems of other designs on the market do not keep constant tension on the cable as it recycles. Each time they stop to re-grab the cable, a “bungee effect” slows down progress. Our PortaBurst systems eliminate bungee effect to improve your productivity. The actuating cylinder pulls with a positive grip on the cable and a second grip holds the cable in place while the unit is recycling. Minimizing bungee provides a faster, more efficient burst.

SIGNATURE SUPPORT

You need more than just a manufacturer for your trenchless operations – you need a partner. At HammerHead® Trenchless, it is our mission to help you succeed on every job. Our customer service is available 24/7, so you always get your answers when you need them. Our world-class, on-site training keeps your crews confident and efficient. And when your job calls for a custom solution, our team of industry experts is ready to help. At HammerHead Trenchless, the most important feature on all of our products is the signature support that comes with it.

Specifications
Model PortaBurst PB30G2
Rig Size L/W/H – in (cm) 25.3/23.5/36.5 (64.2/59.7/92.7) mounted on resistance plate
Total System Weight – lb (kg) 364 (165)
Optional Extraction Cage Weight – lb (kg) 52 (23.6)
Maximum Tonnage 28.65 tons @ 3,000 psi
Min/Max PSI Requirements – psi (bar) 2,200-3,000 (152-207)
Cable Lengths – ft (m) 75, 100, 150 (22.9, 30.5, 45.7)
Control Unit 13 HP Kohler®
Control Unit Pump Flow – g/min (L/min) 6 (23) @ 3,600 rpm
Control Unit Rig Size L/W/H – in (cm) 25/26/42 (63.5/66/106.7)
Control Unit Weight – lb (kg) 250 (113.4)
