Products Pipe Coating Systems

Coating Systems

Overview

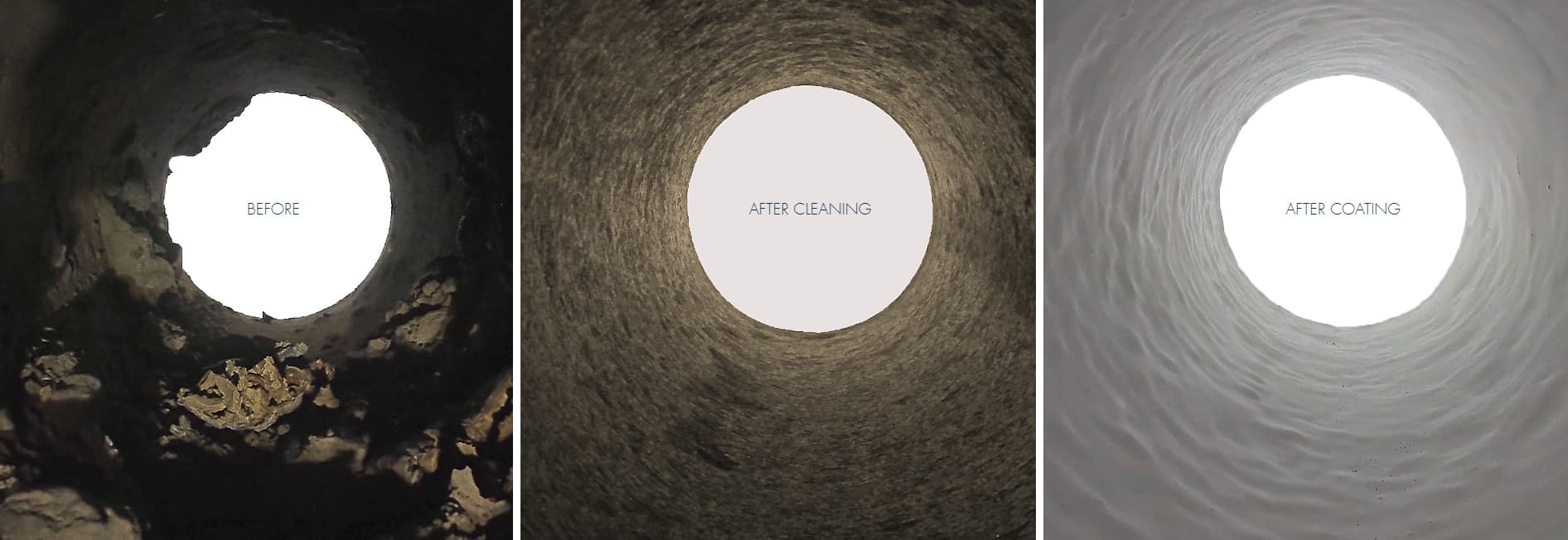

Renovate old or deteriorated drains and sewers from1¼” to 12″ diameter with the Picote Brush Coating™ System. The coating applied provides a damp-proof, corrosion resistant, wear-resistant and non-corrosive lining. Several coats can be applied within the same pipe. Renovate entire piping systems for example apartments or blocks of flats with minimal disruption, avoiding costly excavation.

Industries
Plumbing
Wastewater
Municipalities
Features

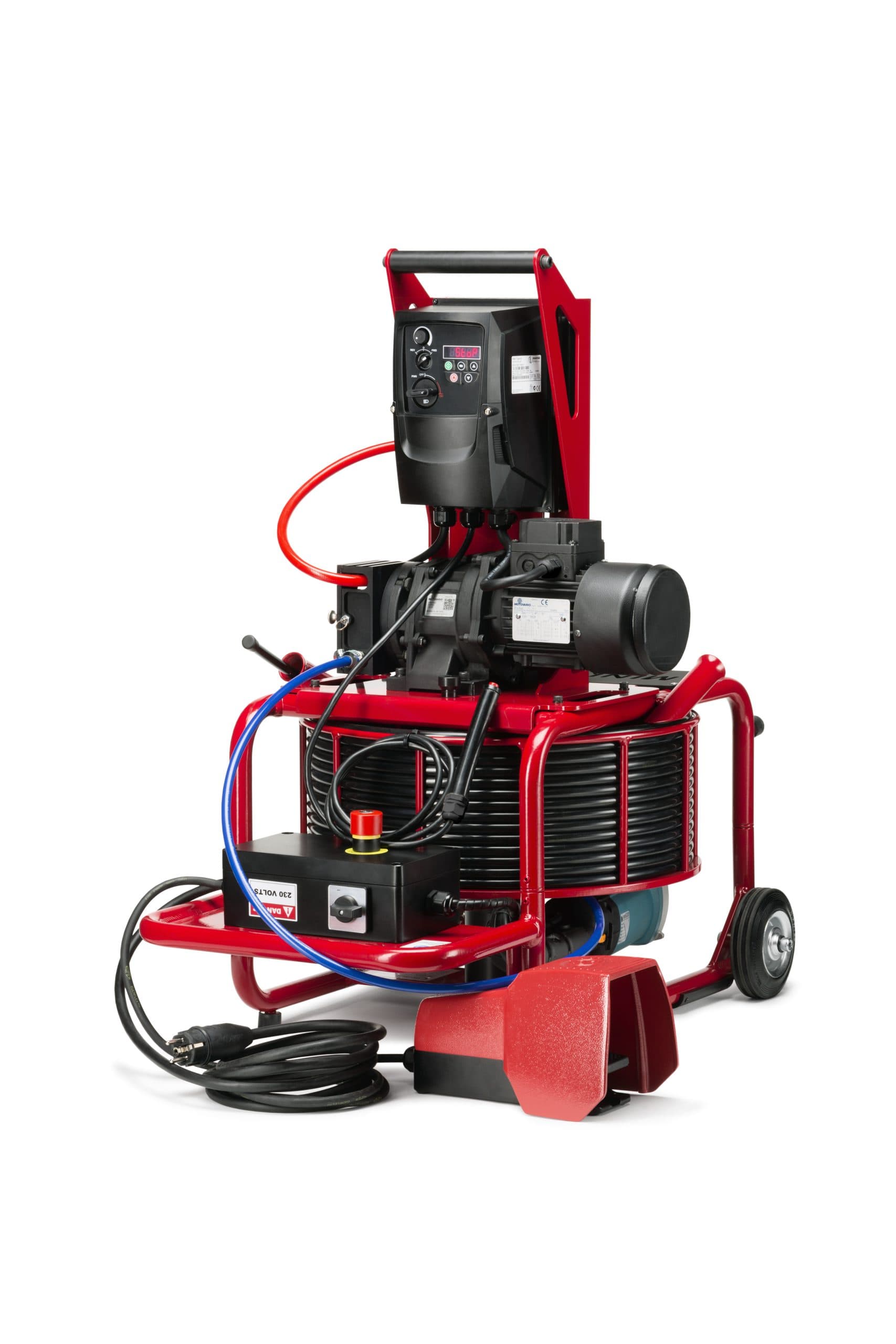

The Picote Brush Coating System

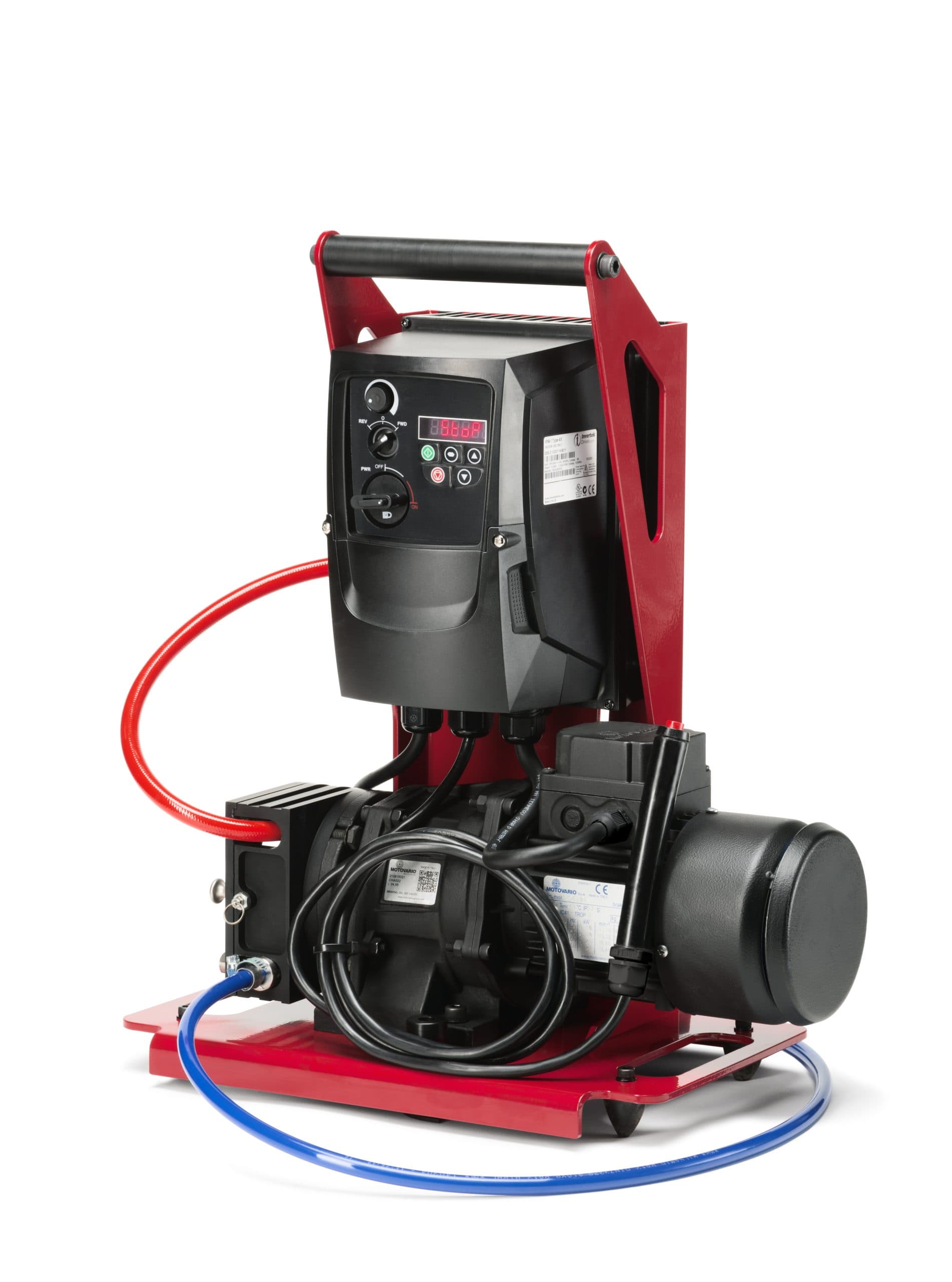

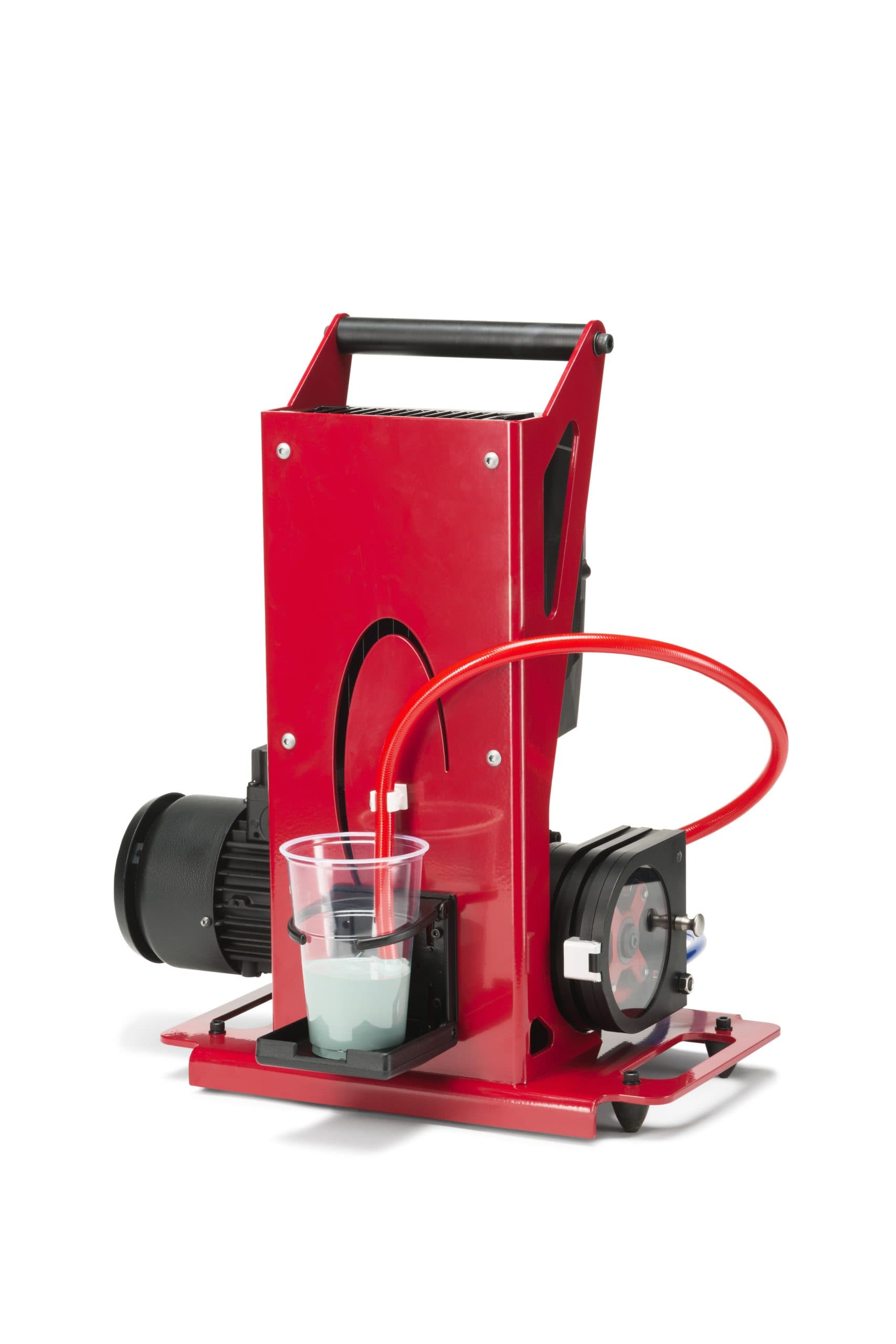

A simple, fast and practical coating system for drain and sewer renovation. Coat unlined or lined pipes or connections from 1 1/4–12″ with the Picote Coating Pump and combination. Coat anything from a small area (such as a lined connection) to entire piping systems.

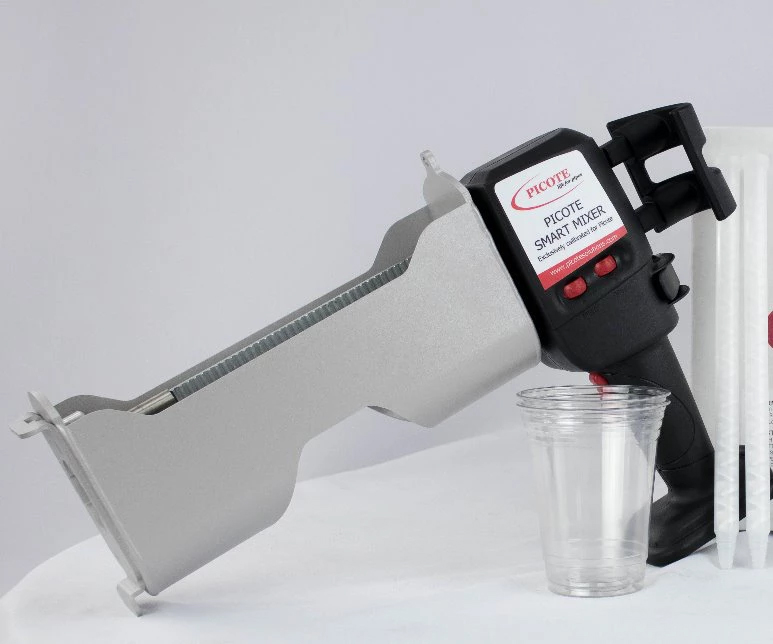

Smart Mixer

The battery operated Smart Mixer is a simple way to mix the dual component 100% solids epoxy resin. Simply lock and load the cartridges and dispense into the coating pump cup for a mess free, easy solution.

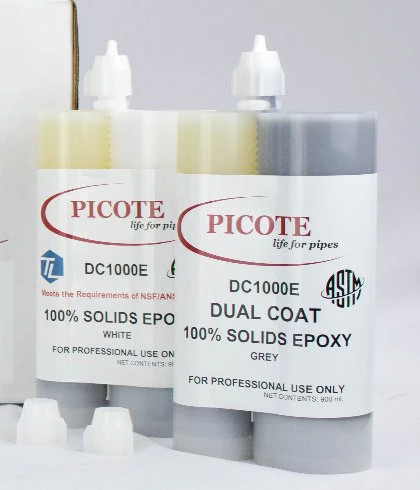

Dual Color Coating Resin

This product has been created to renovate drains, sewers, water pipes, electrical conduits, heat and a/c ducts and more by brush casting a coating. The specially formulated coating resin forms a pipe inside the original pipe that is a tested, safe and environmentally friendly product.The new pipe is damp-proof, corrosion resistant, wear-resistant and noncorrosive. Thanks to a high breaking stretch, it also withstands shocks and bending. The new drainpipe becomes elastic and anti-static.

Specifications
Description Standard Specification
Tensile strength ASTM D638-14 2,979 PSI
Compression Strength ASTM D695-15 9,570 PSI
Flexural Modulus ASTM D790-15e2 430 ksi
Flexural Strength ASTM D790-14e2 6,080 psi
Adhesive strength ASTM D451 Substrate failure
